       进口粘度计 流变仪 质构仪-广州易测仪器有限公司 >> cofo意大利 扩福 >> 盐雾腐蚀试验箱>>

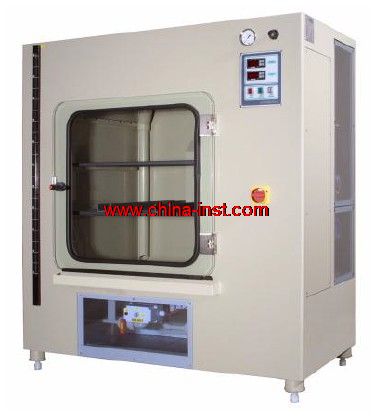

商品名称:盐雾腐蚀试验箱

 盐雾腐蚀试验箱
  商品编号: 20145172024
  商品规格:
  商品品牌: COFO
  商品比较:
  商品库存: 10台 热卖中
  商品折扣: 10折 ( 赠送积分0分 )
  浏览次数:
  购买数量:
市场价:
¥1.00元
会员价:
¥1.00 元
VIP 价:



创新:结果紧凑,垂直模式的腐蚀试验设计

分400L 和1000L 基本型和增强型 四个型号。

新的紧凑型和功能设计

雾试验

凝结试验

执行标准:



Basic models

                                     Enhanced models

50180 method A1/A2/A3

AS 2331 method 3

ASTM B117

ASTM B287

ASTM B368

ASTM D1735

ASTM D2247

ASTM G85 A1

BS 3900/F12

BS 3900/F4

BS 3900/F9

BS 5466 Part 1/2/3

BS 7479

BS EN 60068-2-11

BS EN ISO 7253

BS 2011 Part 2.1

D17 1058

DEF 1053 METH 24

EF 1053 METH 36

DIN 40046

DIN 50 017-KK

DIN 50021

DIN 50907

DIN 50958

DIN 53167

DIN 55991

ECCA T8

FLTM BI 103-01

GM4298P

GM4465P

IEC 68-2-11

JIS H 8502 Meth1/2/3

JIS Z 2371

JNS 30.16.03

ISO 11503

ISO 1456

ISO 3768

ISO 3769

ISO 3770

ISO 4541

ISO 7253

ISO 9227

MIL-STD-202

NFT 30-077

NFX 41-002

RES.30.CT.117

SIS 184 190

VG 95 210

ASTM G43

ASTM G85 A3

DEF 1053 METH 36

RES.30.CT.119

DIN 50907

DRY

MIL-STD-810

UNI 9399

UNI 9590

UNICHIM 652

UNICHIM 741

PROHESION

ASTM G85 /A5

功能:

盐雾试验

冷凝水试验

循环腐蚀试验

特点:

室结构整体10mm厚的聚丙烯。选择在PPS塑料符合CSA火焰试验。试验室与双壁绝缘。进入测试室通过窗玻璃

控制面板和所有必要的控制装置是正确的符合人体工程学的位置。溶液贮槽是左边

电路板是完全封闭在一个专门的区域:它旁边发现电磁阀,加湿器和盐溶液计量泵区。每个部分是简单和快速维修方便

技术规格:



Features / Models

Basic

Enhanced

Strong structure overall 10mm thick polypropylene construction with built-in salt solution reservoir.

yes

yes

Glass door for easy viewing inside test chamber, top cover is peaked to prevent dripping on samples.

yes

yes

Complete Spray nozzle made in plastic material, suitable for ISO 9227 AASS and CASS tests.

yes

yes

Fog diffuser in the centre of the test chamber allows fog uniformity.

yes

yes

Humidifying tower with automatic water level restoring system and temperature-controlled water heater.

yes

yes

Peristaltic pump for salt solution dosage.

yes

yes

Ergonomic control panel.

yes

yes

Pressure regulator for control of nozzle air pressure.

yes

yes

Pressure gauge for display of nozzle air pressure.

yes

no

Digital temperature controller of test chamber temperature.

yes

no

Timer to set test duration, programmable up to 9999 hours, with stopping of all functions at test end.

yes

no

Pilot lamp to signal lack of salt solution.

yes

no

Microprocessor control panel. Test status continuously displayed on a large LCD with 4 lines display for test parameters and program menu.

no

yes

Free programming, up to 15 different test programs, input via keyboard with soft keys and tactile feedback.

no

yes

Self-diagnostic, routine service reminders including warning messages and safety shut down.

no

yes

Complete test report: chamber test temperature, humidifier temperature, air nozzle pressure, dosing pump RPH are periodically measured and saved in the controller memory, and by simply pressing a key you can print a complete report of the test.

no

yes

Data transfer via RS232-C serial interface.

no

yes

Air and water filter to be installed on supply lines.

yes

yes

4 bars and 3 standard specimen holders supplied.

yes

yes



Technical data / Models

400 l Basic / Enhanced

1000 l Basic / Enhanced.

Physical dimensions

Overall dimensions (mm)

1320 x 780 x 1450 (W x D x H)

1640 x 880 x 1800 (W x D x H)

Test chamber internal dimensions (without dome area) (mm)

800 x 700 x 800 (W x D x H)

1100 x 800 x 1140 (W x D x H)

Test chamber internal volume (without dome area) (litres)

448

1000

Weight (Kg)

168

300

Salt solution reservoir capacity (litres)

110

260

Electrical supply

Type of connection

1/N/PE

Voltage (V)

230 +- 10 % 50 Hz

Current consumption (A)

9

14

Water supply for humidifier

Type of water

demineralised

Water pressure (bar)

2-4

Water consumption (approximate) (litres/day)

3

Air supply

Type of air

Filtered, oil free

Air pressure (bar)

4-6

Air consumption (approximate) (Nm3/h)

5-8

Temperature range

Test chamber temperature range (°C)

Ambient to 50

Humidifier temperature range (°C)

Ambient to 70

Supplied accessories

Rods

4

6

Test panel racks

3

4

Air filter and pipe (4 m)

yes

循环测试选项

增强模型的控制面板允许循环试验结合易于编程:盐雾,冷凝水,干燥和环境条件。执行循环试验室必须完成下列可选部分

干腐蚀选项,赤霉病腐蚀周期。空气加热器安装到热泻空气之前,将其在试验室和试验室底部的钛板将淹没底成干底。只有一个干燥室底部允许快速干燥的样品

ASTM g85-98附件5 Prohesion测试选项。除了安装腐蚀旁路部分安装在加湿器的标准化生产

选择ASTM g85-98附件4盐/SO2喷雾试验。一个外部的SO2加药系统提供和气体扩散装置安装在试验
