商品名称:WACO Countersink Depth Gauges

 WACO Countersink Depth Gauges
  商品编号: 201274506
  商品规格:
  商品品牌: 美国WACO沃克
  商品比较:
  商品库存: 0台 缺货
  商品折扣: 0折 ( 赠送积分0分 )
  浏览次数:
  购买数量:
市场价:
¥1.00元
会员价:
¥0.00 元
VIP 价:


WACO Countersink Depth Gauges

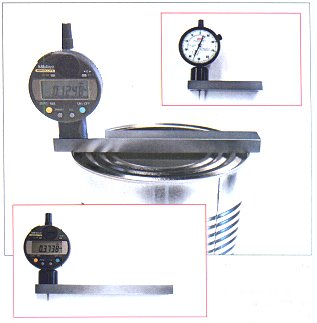

     Provide accurate measurements from the top of the double seam to the bottom of the countersink adjacent to the chuck wall.  Gauges for beverage cans are 4” long and use a carbide tip with a .015” radius.  Gauges for sanitary cans are 7” long, and use a .030” radius carbide tip. Countersink gauges can be equipped with either a 2” diameter Inch dial indicator which reads to .001”, a 2” diameter Metric dial indicator which reads to .01mm, or a digital indicator which is switchable between inch/mm, and reads to .0001”/.001mm.  The digital indicator has an SPC output for connection to automated seam analysis systems such as the WACO Accuseam 2000.  All WACO countersink gauges are supplied in a foam lined plastic case.

Cat. No.       Description
10772-00      WACO Countersink Gauge,7” long, with Inch Dial Indicator .001”, for sanitary cans
10772-05      WACO Countersink Gauge,4” long, with Inch Dial Indicator .001”, for beverage cans
10772-50      WACO Countersink Gauge with Metric Dial Indicator .01mm, 7” long,  for sanitary cans
10772-55      WACO Countersink Gauge with Metric Dial Indicator.01mm,  4” long, for beverage cans
10772-25      WACO Digital Countersink Gauge, 7” long, for sanitary cans, .0001”/.001mm
10772-26      WACO Digital Countersink Gauge, 4” long, for beverage cans, .0001”/.001mm

Replacement Countersink Tips for WACO Dial Countersink Gauges:
10724-17   Carbide Countersink Tip, .015”R, for beverage cans, .625” long
10724-19   Carbide Countersink Tip, .030”R, for sanitary cans, .625” long

Replacement Countersink Tips for WACO Digital Countersink Gauges, and Ames Gauges:
10772-10    Carbide Countersink Tip, .015”R, for beverage cans, .500” long
10772-11    Carbide Countersink Tip, .030”R, for sanitary cans, .500” long
